1 / 12Key features
- Size: 14" W x 20-1/4" H x 23" D
- Cut-out: 12-1/4" W x 18-3/4" H x 22-7/8" D
- Drawer fronts 4", 6" and 7-7/8" high, 19-3/4" extension
- Soft-close tracks, quick-release drawers, 1-1/4" flange
- 304 stainless steel: 16 gauge frame, 20 gauge drawer cabinet, 18 gauge galvanized box
- No. 4 light brushed finish, Polished Chrome Handle (zinc alloy, chrome plated)
- Weight: 53 lbs
- Covered by our warranty: see details
Description

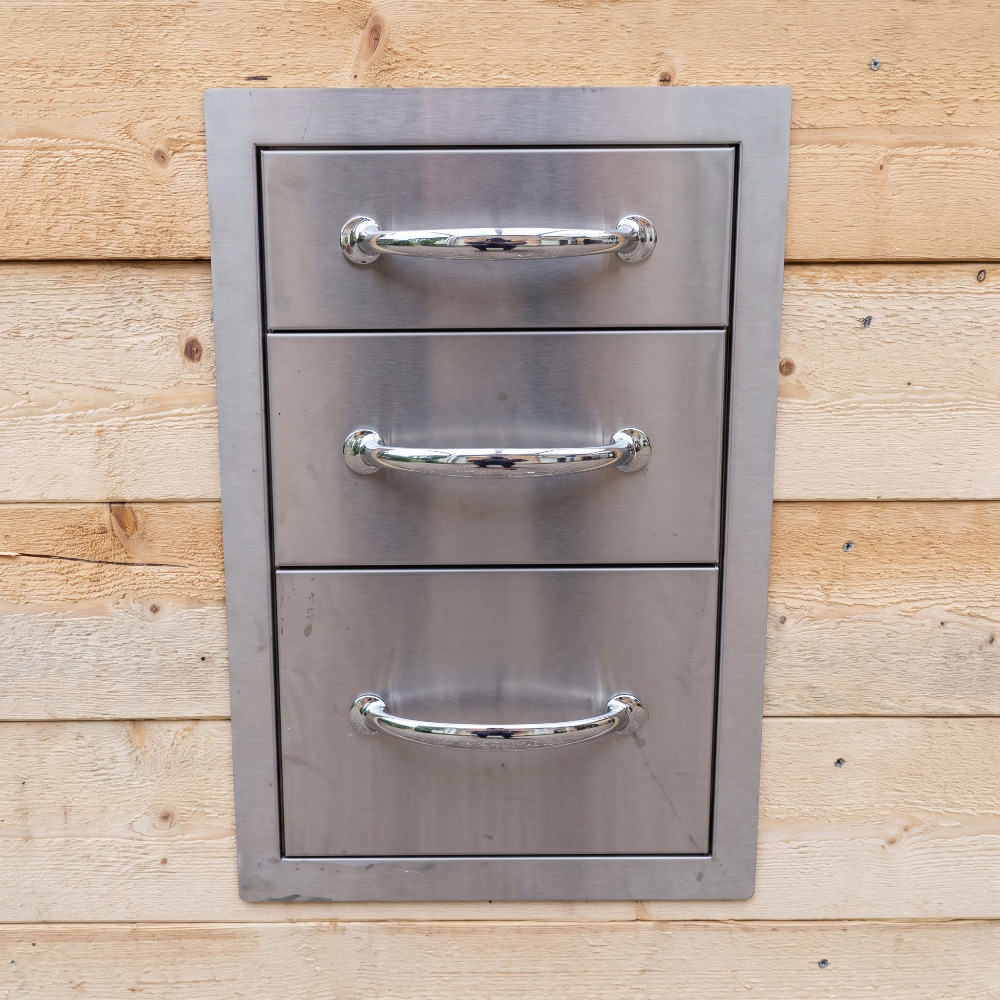

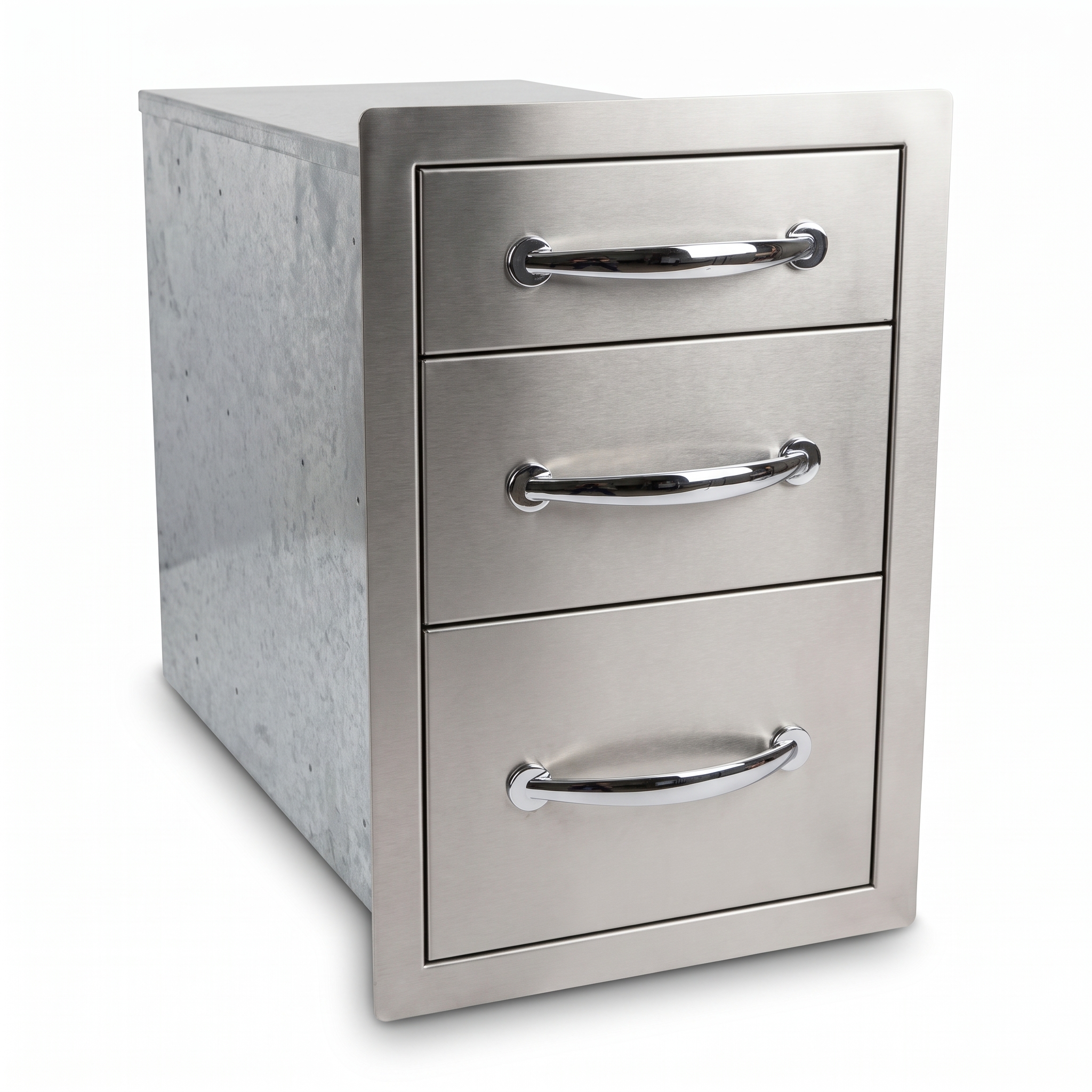

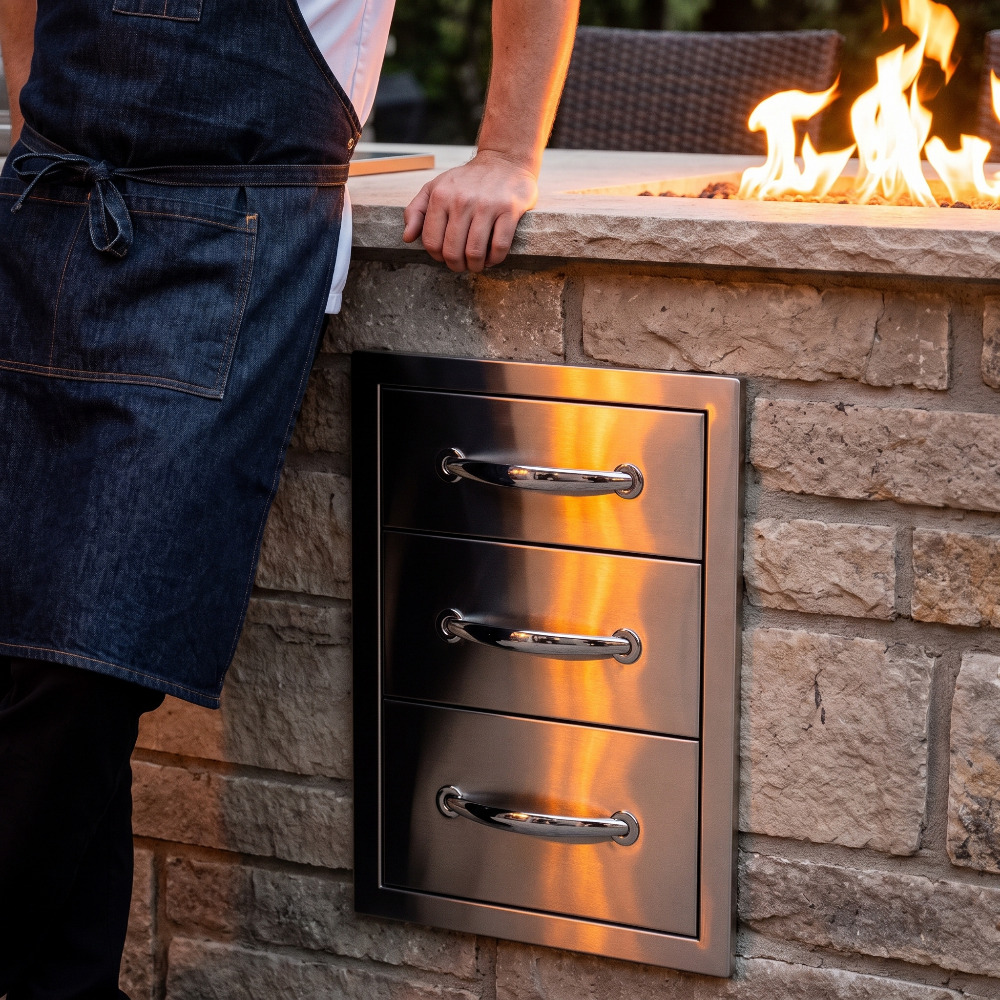

The Classic Series 14" Flush Triple Access Drawer (B-TD18) puts three drawers in a small, medium and large size into a 14" wide opening in an outdoor kitchen island.

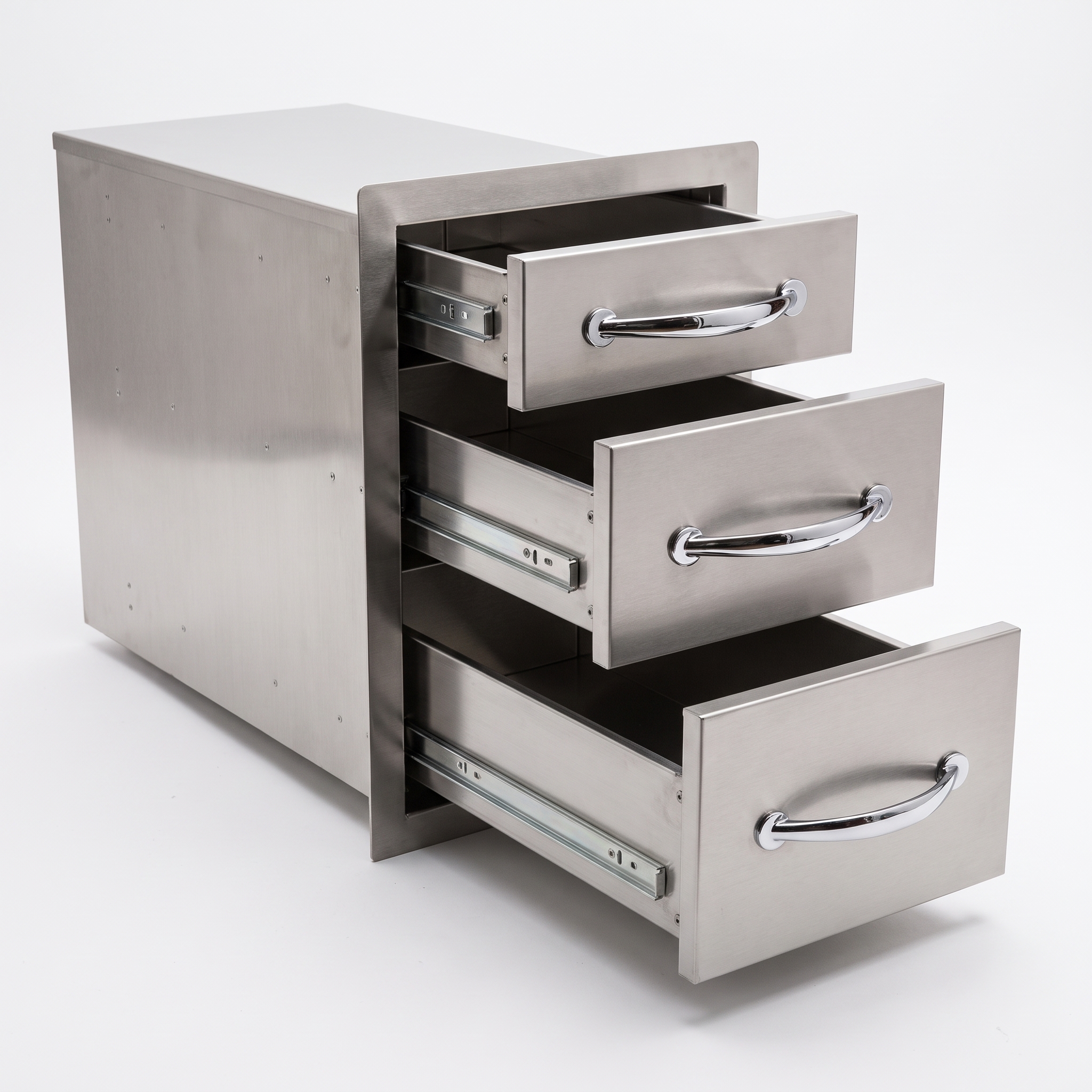

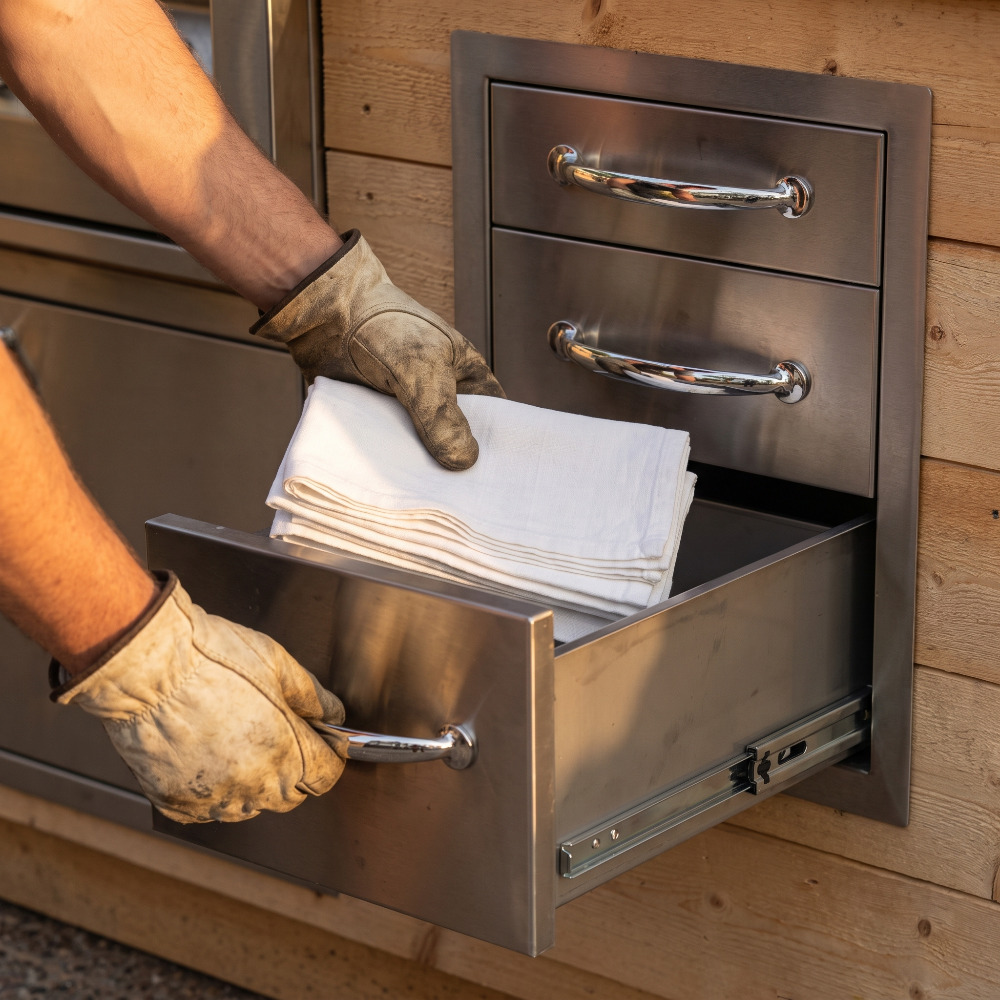

It measures 14" W x 20-1/4" H x 23" D and fits a 12-1/4" W x 18-3/4" H x 22-7/8" D cut-out, with a 1-1/4" flange. The drawer fronts are 4", 6" and 7-7/8" high, and each drawer extends 19-3/4" on soft-close tracks. The drawers are quick-release, so they lift out for cleaning.

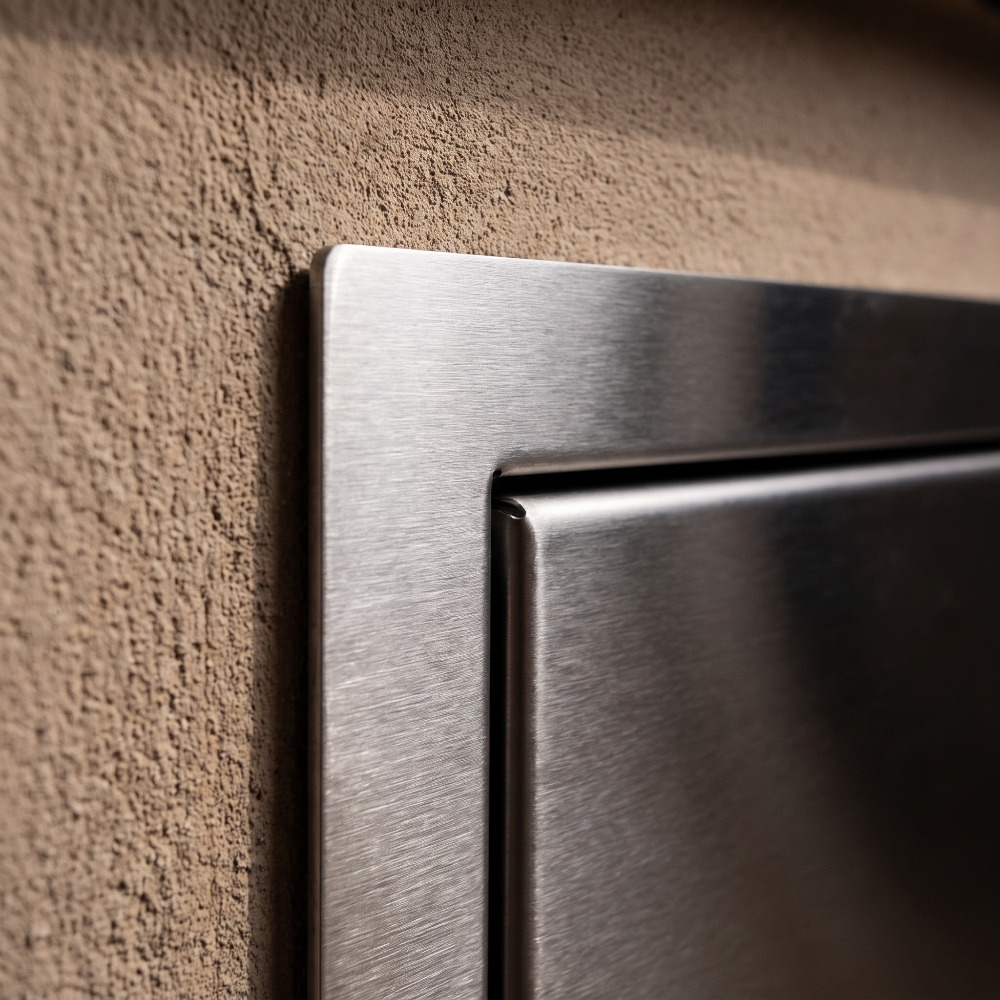

The frame is 16 gauge 304 stainless steel, the drawer cabinet 20 gauge and the box 18 gauge galvanized, all in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with the Polished Chrome Handle (zinc alloy, chrome plated) and weighs 53 lbs.
See our warranty page for coverage.
| Name | Classic Series 14" Flush Triple Access Drawer - B-TD18 |
|---|---|
| Item No. | B-TD18 |
| Series | ODK Components |
| Product size | 14" W x 20-1/4" H x 23" D |
| Cut-out | 12-1/4" W x 18-3/4" H x 22-7/8" D |
Specifications
| Type | Triple drawer |
|---|---|
| Series | Classic Series Flush Style |
| Dimensions | 14" W x 20-1/4" H x 23" D |
| Cut-Out Size | 12-1/4" W x 18-3/4" H x 22-7/8" D |
| Drawers | 3 Drawers, soft-close style |
| Material | 304 stainless steel; 16 gauge frame, 20 gauge drawer cabinet, 18 gauge galvanized box |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 53 lbs |
| Item Number | B-TD18 |
| Warranty | View warranty |

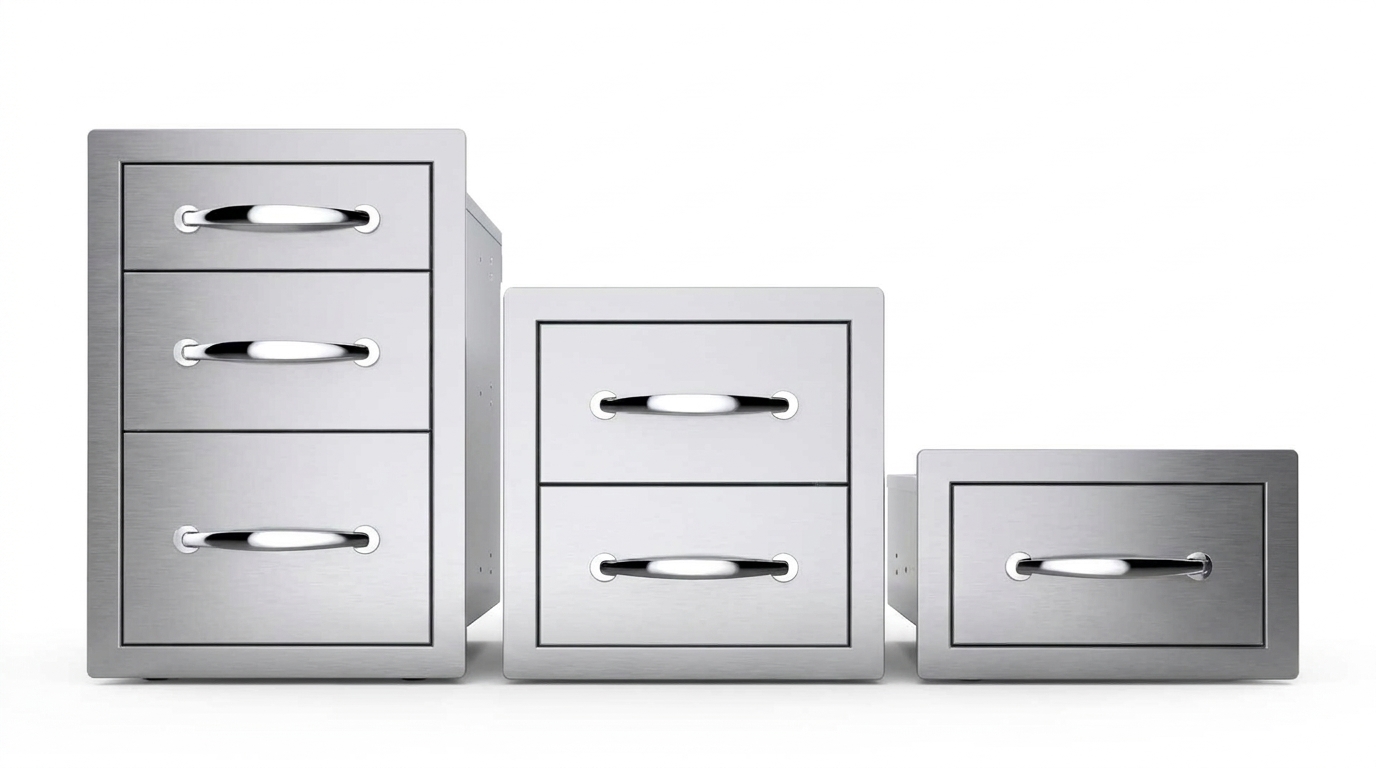

Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $723.00 | $748.00 | $334.00 | $610.00 | $238.00 |
| SKU | B-TD18 | A-DPCF | B-DD12 | DE-DPCF13 | B-SD6 |
| Type | Triple drawer | Paper towel holder | Double drawer | Paper towel holder | Single drawer |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Designer Series Raised Style | Classic Series Flush Style |
| Style | Not listed | Classic | Classic | Designer | Classic |
| Width | 14" | 17" | 14" | 18" | 14" |
| Depth | 23" | 20-1/2" | 23" | 23" | 23" |
| Height | 20-1/4" | 30" | 14-3/8" | 13" | 8-1/2" |
| Cut-Out Width | 12-1/4" | 15-1/2" | 12-1/4" | 16-1/2" | 12-1/4" |
| Cut-Out Depth | 22-7/8" | 20-1/2" | Not listed | Not listed | 22-7/8" |
| Cut-Out Height | 18-3/4" | 27-1/2" | 12-1/2" | 11" | 6-1/2" |
| Drawers | 3 | 2 | 2 | Not listed | 1 |
| Drawer Tracks | Soft-close | Soft-close | Soft-close | Soft-close | Soft-close |
| Material | 304 stainless steel; 16 gauge frame, 20 gauge drawer cabinet, 18 gauge galvanized box | 16 gauge 304 stainless steel frame, 18 gauge 304 panel, 20 gauge 201 cabinet, 18 gauge galvanized box | 304 stainless steel; 16 gauge frame, 20 gauge drawer cabinet, 18 gauge galvanized enclosed outer box | 304 Stainless Steel | 304 stainless steel; 16 gauge frame, 20 gauge drawer cabinet, 18 gauge galvanized enclosed outer box |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | Not listed | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 53 lbs | 53 lbs | 37 lbs | Not listed | 23 lbs |
| Item Number | B-TD18 | A-DPCF | B-DD12 | Not listed | B-SD6 |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Not listed | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
