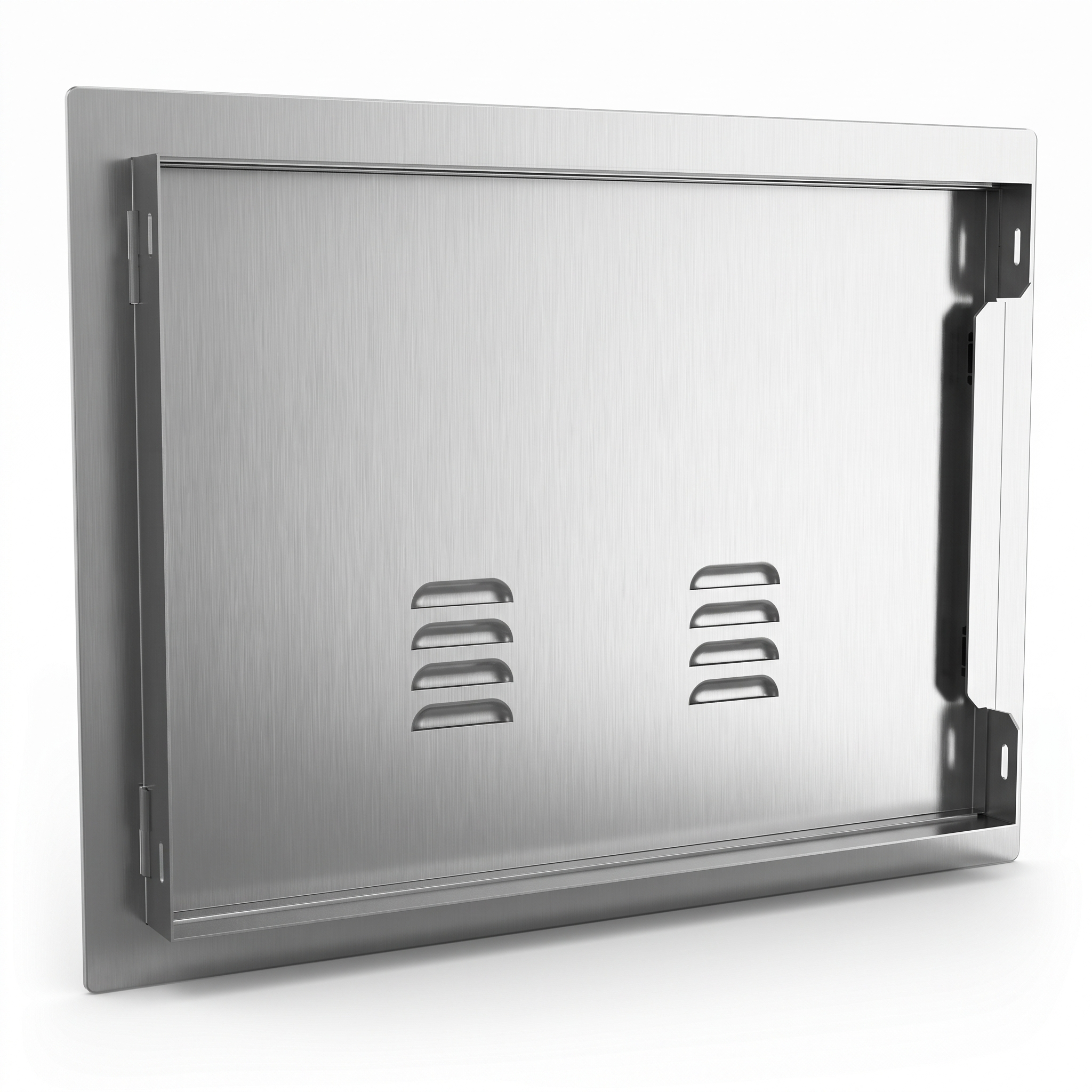

1 / 5Classic Series 17" x 24" Right Swing Horizontal Vented Door - A-DH1724
★★★★☆4.2 · 5 reviewsKey features
- Size: 27" W x 20" H x 1-5/8" D
- Cut-out: 24-1/4" W x 17-1/4" H
- Vented (bottom louvers), right swing (the left version is item A-DH1724-L)
- Opens 180 degrees on exposed hinges
- Top and bottom magnets with a steel strike plate
- Depth to frame hole: 1"; fits a typical 4" island frame
- 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel; No. 4 light brushed finish; Polished Chrome Handle (zinc alloy, chrome plated)
- Weight: 11-1/2 lbs
Description
The Classic Series 17" x 24" Right Swing Horizontal Vented Door (A-DH1724) opens into the island, and its bottom louvers let air move through, which matters where a propane tank or gas lines are stored.
It measures 27" W x 20" H x 1-5/8" D and fits a 24-1/4" W x 17-1/4" H cut-out. The depth from the face to the frame mounting hole is 1", and it fits a typical 4" island frame. It weighs 11-1/2 lbs.

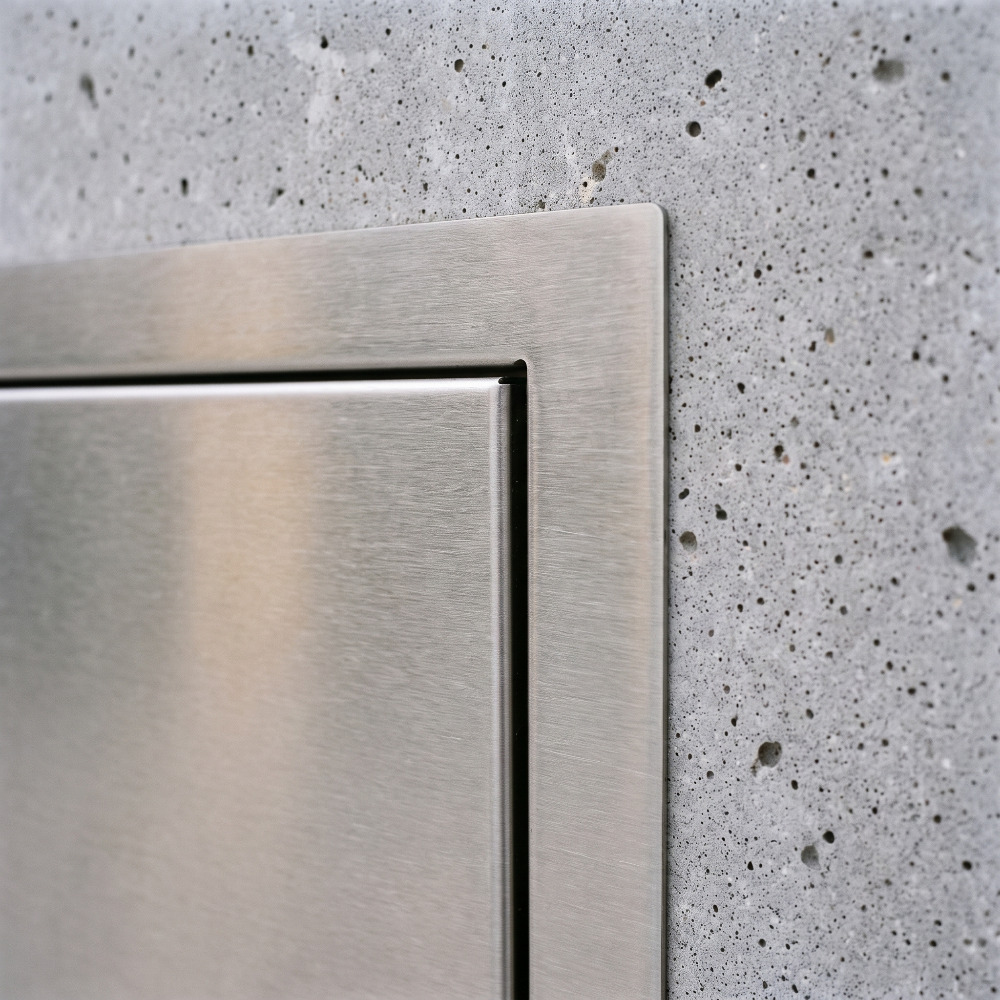

The frame is 16 gauge 304 stainless steel and the door panel is 18 gauge 304 stainless steel, finished in No. 4 light brushed with the flush style of the Classic Series. This is the right swing version, and a left swing version is also available. It opens 180 degrees on exposed hinges, top and bottom magnets close against a steel strike plate, and it comes with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 17" x 24" Right Swing Horizontal Vented Door - A-DH1724 |
|---|---|
| Item No. | A-DH1724 |
| Series | Classic Series Flush Style |
| Product size | 27" W x 20" H x 1-5/8" D |
| Cut-out | 24-1/4" W x 17-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Dimensions | 27" W x 20" H x 1-5/8" D |
| Cut-Out Size | 24-1/4" W x 17-1/4" H |
| Doors | 1 |
| Door Swing | Right swing (the left version is item A-DH1724-L) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11.5 lbs |
| Item Number | A-DH1724 |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $235.00 | $235.00 | $198.00 | $198.00 | $235.00 |
| SKU | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 | DV1724 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 27" | 20" | 23" | 17" | 20" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 20" | 27" | 17" | 23" | 27" |
| Cut-Out Width | 24-1/4" | 17-1/4" | 20-1/4" | 14-1/4" | 17-1/4" |
| Cut-Out Height | 17-1/4" | 24-1/4" | 14-1/4" | 20-1/4" | 24-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DV1420-L) | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 11.5 lbs | Not listed | 11 lbs | Not listed | 11.5 lbs |
| Item Number | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 | DV1724 |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Non-vented |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Depth To Frame Hole | 1" | 1" | 1" | 1" | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (6)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 3 business days after delivery.
Receiving Your Shipment
When the shipment arrives, please do the following:
- Inspect every box carefully before signing. There is no such thing as damage that is too small: dents, tears, crushed corners, punctures, or scuffs should all be noted.
- Take clear photos of any box that shows damage.
- On the delivery receipt, write down exactly how many boxes have visible damage. If it is electronic, have the driver show you where to notate the damage. Before handing it back, take a photo of the document showing your notation.
After the driver leaves, please immediately open and inspect the items themselves. If you find any damage, contact us with the following:
- A photo of the item unboxed with the damage visible
- A close-up photo of the actual damage
- A photo of the delivery document where you noted the box damage
These steps ensure we can file a claim quickly and get any replacement parts or items to you without delay.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This 17" x 24" vented door is a good addition to my outdoor kitchen. The right swing works perfectly for my setup, and the ventilation is a nice touch for keeping things dry inside. Installation was straightforward, though I did need to make sure my opening was perfectly square.
It's okay. The 17x24 size fit my island and the vents help with air flow. For the price though, I expected the latch to feel sturdier. Does the job, nothing outstanding.
Exactly what my outdoor kitchen needed. The vents keep my propane tank area aired out and the stainless looks great. Super easy to install and feels durable.
Really impressed with this door. The 17x24 size is right for my island and the right swing is convenient. Smart to have it vented, and it feels solid and built to last.
Easy to install in my outdoor kitchen frame. Dimensions were accurate and the right swing works for my layout. The vents are a plus for air flow.
