Appliance Cabinets
304 stainless cabinets for outdoor refrigeration, cocktail stations, and side burners. Side burner and cocktail station cabinets take slide-in side burners and cocktail stations, including the larger 30" cocktail station, and refrigerator cabinets take 15" to 25" fridges, wine coolers, kegerators and ice makers. All cabinets have utility access ports and access points for an easy install.
Appliance Cabinets
Build the cold and prep side of the island in 304 stainless. Cocktail-station cabinets use a trim-kit face for Versa double burners, Companion Pro, and 14" bar stations. Order a left or right door swing for trash or propane storage. Fridge frames arrive as an open three-piece set: left panel, right panel, and a finished back for 15" to 25" outdoor refrigeration. Warming-drawer cabinets are a closed box with the drawer cut-out already in the face.
- Side burner and cocktail station cabinets, left or right swing
- Hybrid grill and bar-center cabinet, also fits the 30" cocktail station
- Refrigerator cabinet for outdoor fridges up to 15" wide
- Refrigerator cabinet for fridges and wine coolers up to 21" wide
- Refrigerator cabinet for fridges and kegerators up to 25" wide
- Single and double warming drawer cabinets
20" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Left Swing Door - SAC20CSDL
Side burner & cocktail station cabinets
30" cocktail station cabinet
Refrigerator cabinets
Single & double warming-drawer cabinets
Utility access ports for an easy install
Expandable partition design
| Specification | Value |
|---|---|
| Material | 304 stainless steel |
| Openings | 14-1/2" cocktail · 15" · 21" · 25" · 30" cocktail |
 Electrical | 1-gang box + SS cover |
| Expand | Swap back panel + partitions |
Material
- Value
- 304 stainless steel
Openings
- Value
- 14-1/2" cocktail · 15" · 21" · 25" · 30" cocktail
Electrical
- Value
- 1-gang box + SS cover
Expand
- Value
- Swap back panel + partitions
Appliance Cabinets in this collection
8 cabinets in this collection, each listed with width, cut-out, and material.
Cocktail stations & side burners
Cabinets for side burners and cocktail stations, including the 30" cocktail station
Fridge & refrigeration frames
Refrigerator cabinets sized for 15", 21" and 25" appliances
Warming drawer cabinets
Single and double warming drawer cabinets
Greater detail on appliance cabinets
Cocktail and side-burner bays
20" side burner and cocktail station cabinets have an adjustable trim face for slide-in side burners and cocktail stations. The door side holds trash or propane; order left or right swing so it clears the cabinet next to it. A 34" cabinet takes the 30" cocktail station.
Fridge frames
APC cabinets arrive as two side partitions and a back panel. The fridge, wine cooler, or ice maker sits in the opening with room to breathe and a finished back that looks right in the open or against a wall.
Warming-drawer cabinets
Single and double warming-drawer cabinets come with peg legs, rod handles, front and back kick plates, and utility access ports for an easy install.
Appliance Fit Guide
Sunstone Appliance Cabinets take cocktail stations and side burners as well as outdoor refrigeration. SAC20CSDL / CSDR are the 20" bays for 14-1/2" Versa side burners and 14" cocktail stations. SAC34CGDC is the 34" hybrid grill / bar-center cabinet that also fits the larger 30" cocktail station, it stays on Grill Cabinets as a grill base and is listed here as the 30" cocktail bay. Fridge frames (APC) ship as a 3-piece package (two side partition panels + one back support panel). Adjacent counter rails can be removed for taller appliances, and leg height is adjustable.
| Item # | Cabinet Size | Appliance Type | Max Appliance Width | Max Height | Compatible Appliances | Notes | |
|---|---|---|---|---|---|---|---|
 SAC24APCRefrigerator | 24"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet | Refrigerator | Up to 15" | Up to 34" (adjustable legs) | Sunstone® 15" Fridge, Perlick® 15", Marvel® 15", True® 15", U-Line® 15", Danby® 15", Most 15" wide outdoor-rated fridges | Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
 SAC30APCRefrigerator | 30"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet | Refrigerator | Up to 21" | Up to 34" (adjustable legs) | Sunstone® 21" Fridge, Perlick® 20", Marvel® 20", True® 20", U-Line® 21", Alfresco® 21", Most 21" wide outdoor-rated fridges | Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
 SAC34APCRefrigerator | 34"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet | Refrigerator | Up to 25" | Up to 34" (adjustable legs) | Sunstone® 24" Fridge, Perlick® 24", Marvel® 24", True® 24", U-Line® 24", Alfresco® 24", Most 24" to 25" wide outdoor-rated fridges, wine coolers, or kegerators | New Design. Includes 1-gang electrical box. Counter rail removable for taller units. | View Cabinet → |
| SAC20CSDL Cocktail / Side Burner | 20"W × 28-1/4"D × 34-1/2"H · Cocktail / Side Burner Cabinet | Cocktail / Side Burner | 9-3/4" to 14-1/2" cut-out | 8" to 10-1/4" | Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14-1/2" slide-in side burners and bar stations | Left-swing door for trash or propane. Trim-kit front for Versa side burners and 14" cocktail / bar stations. | View Cabinet → |
 SAC20CSDRCocktail / Side Burner | 20"W × 28-1/4"D × 34-1/2"H · Cocktail / Side Burner Cabinet | Cocktail / Side Burner | 9-3/4" to 14-1/2" cut-out | 8" to 10-1/4" | Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14-1/2" slide-in side burners and bar stations | Right-swing door for trash or propane. Same 14-1/2" cut-out as SAC20CSDL. | View Cabinet → |
 SAC34CGDCCocktail / Side Burner | 34"W × 28-1/4"D × 34-1/2"H · Hybrid Grill / 30" Cocktail Cabinet | Cocktail / Side Burner | 23-7/8" to 28-1/2" cut-out | 10-3/8" to 12-3/4" | 30" cocktail / bar-center stations, Sunstone® charcoal and hybrid grills (see Grill Cabinets), Most 24" to 28-1/2" cut-out bar centers | Dual-listed on Grill Cabinets as a charcoal/hybrid grill base. On this page it is the bay for the larger 30" cocktail station. | View Cabinet → |
 SCC4SPEL / SCC4SPERPartition Panel | 4" Combo Left & Right Panels · Partition Panel Package | Partition Panel | Adjustable, pairs with any back panel | Adjustable leg height | Use with SCC15SPE, SCC21SPE, or SCC25SPE back panels, Accommodates fridges, wine coolers, kegerators, ice makers, Can also accept grill carts | Two side partition panels included. Allows unlimited expandability for multiple appliance runs. Left panel includes 304 SS electrical cover. | View Cabinet → |
 SCC15SPEPartition Panel | 15" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 15" wide appliance run | Adjustable | 15" fridges, wine coolers, ice makers, Sunstone® 15" Fridge, Perlick® 15", Marvel® 15" | Back support panel for 15" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |
 SCC21SPEPartition Panel | 21" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 21" wide appliance run | Adjustable | 21" fridges, wine coolers, kegerators, Sunstone® 21" Fridge, Perlick® 20", U-Line® 21" | Back support panel for 21" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |
 SCC25SPEPartition Panel | 25" Back Appliance Panel · Back Support Panel | Partition Panel | Pairs with 25" wide appliance run | Adjustable | 24" to 25" fridges, wine coolers, kegerators, Sunstone® 24" Fridge, Perlick® 24", Marvel® 24" | Back support panel for 25" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels. | View Cabinet → |
SAC24APC Refrigerator
- Cabinet Size
- 24"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 15"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 15" Fridge, Perlick® 15", Marvel® 15", True® 15", U-Line® 15", Danby® 15", Most 15" wide outdoor-rated fridges
- Notes
- Includes 1-gang electrical box. Counter rail removable for taller units.
SAC30APC Refrigerator
- Cabinet Size
- 30"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 21"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 21" Fridge, Perlick® 20", Marvel® 20", True® 20", U-Line® 21", Alfresco® 21", Most 21" wide outdoor-rated fridges
- Notes
- Includes 1-gang electrical box. Counter rail removable for taller units.

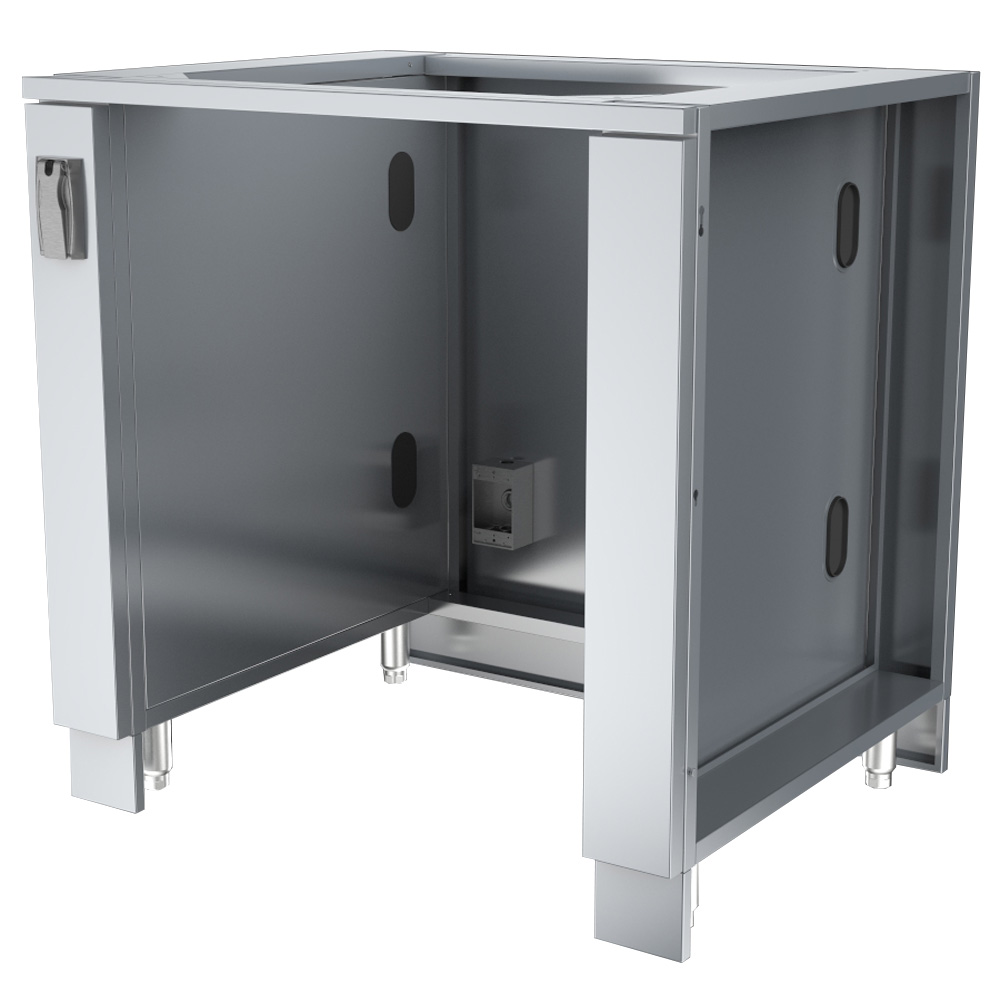

SAC34APC Refrigerator
- Cabinet Size
- 34"W × 28-1/4"D × 34-1/2"H · Appliance Cabinet
- Appliance Type
- Refrigerator
- Max Appliance Width
- Up to 25"
- Max Height
- Up to 34" (adjustable legs)
- Compatible Appliances
- Sunstone® 24" Fridge, Perlick® 24", Marvel® 24", True® 24", U-Line® 24", Alfresco® 24", Most 24" to 25" wide outdoor-rated fridges, wine coolers, or kegerators
- Notes
- New Design. Includes 1-gang electrical box. Counter rail removable for taller units.
SAC20CSDL Cocktail / Side Burner
- Cabinet Size
- 20"W × 28-1/4"D × 34-1/2"H · Cocktail / Side Burner Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 9-3/4" to 14-1/2" cut-out
- Max Height
- 8" to 10-1/4"
- Compatible Appliances
- Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14-1/2" slide-in side burners and bar stations
- Notes
- Left-swing door for trash or propane. Trim-kit front for Versa side burners and 14" cocktail / bar stations.
SAC20CSDR Cocktail / Side Burner
- Cabinet Size
- 20"W × 28-1/4"D × 34-1/2"H · Cocktail / Side Burner Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 9-3/4" to 14-1/2" cut-out
- Max Height
- 8" to 10-1/4"
- Compatible Appliances
- Sunstone® SUN13VDB Versa Double Burner, Sunstone® SUN13CPRO Companion Pro, Sunstone® B-RBC14 14" cocktail station, Most 14-1/2" slide-in side burners and bar stations
- Notes
- Right-swing door for trash or propane. Same 14-1/2" cut-out as SAC20CSDL.
SAC34CGDC Cocktail / Side Burner
- Cabinet Size
- 34"W × 28-1/4"D × 34-1/2"H · Hybrid Grill / 30" Cocktail Cabinet
- Appliance Type
- Cocktail / Side Burner
- Max Appliance Width
- 23-7/8" to 28-1/2" cut-out
- Max Height
- 10-3/8" to 12-3/4"
- Compatible Appliances
- 30" cocktail / bar-center stations, Sunstone® charcoal and hybrid grills (see Grill Cabinets), Most 24" to 28-1/2" cut-out bar centers
- Notes
- Dual-listed on Grill Cabinets as a charcoal/hybrid grill base. On this page it is the bay for the larger 30" cocktail station.
SCC4SPEL / SCC4SPER Partition Panel
- Cabinet Size
- 4" Combo Left & Right Panels · Partition Panel Package
- Appliance Type
- Partition Panel
- Max Appliance Width
- Adjustable, pairs with any back panel
- Max Height
- Adjustable leg height
- Compatible Appliances
- Use with SCC15SPE, SCC21SPE, or SCC25SPE back panels, Accommodates fridges, wine coolers, kegerators, ice makers, Can also accept grill carts
- Notes
- Two side partition panels included. Allows unlimited expandability for multiple appliance runs. Left panel includes 304 SS electrical cover.
SCC15SPE Partition Panel
- Cabinet Size
- 15" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 15" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 15" fridges, wine coolers, ice makers, Sunstone® 15" Fridge, Perlick® 15", Marvel® 15"
- Notes
- Back support panel for 15" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.
SCC21SPE Partition Panel
- Cabinet Size
- 21" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 21" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 21" fridges, wine coolers, kegerators, Sunstone® 21" Fridge, Perlick® 20", U-Line® 21"
- Notes
- Back support panel for 21" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.

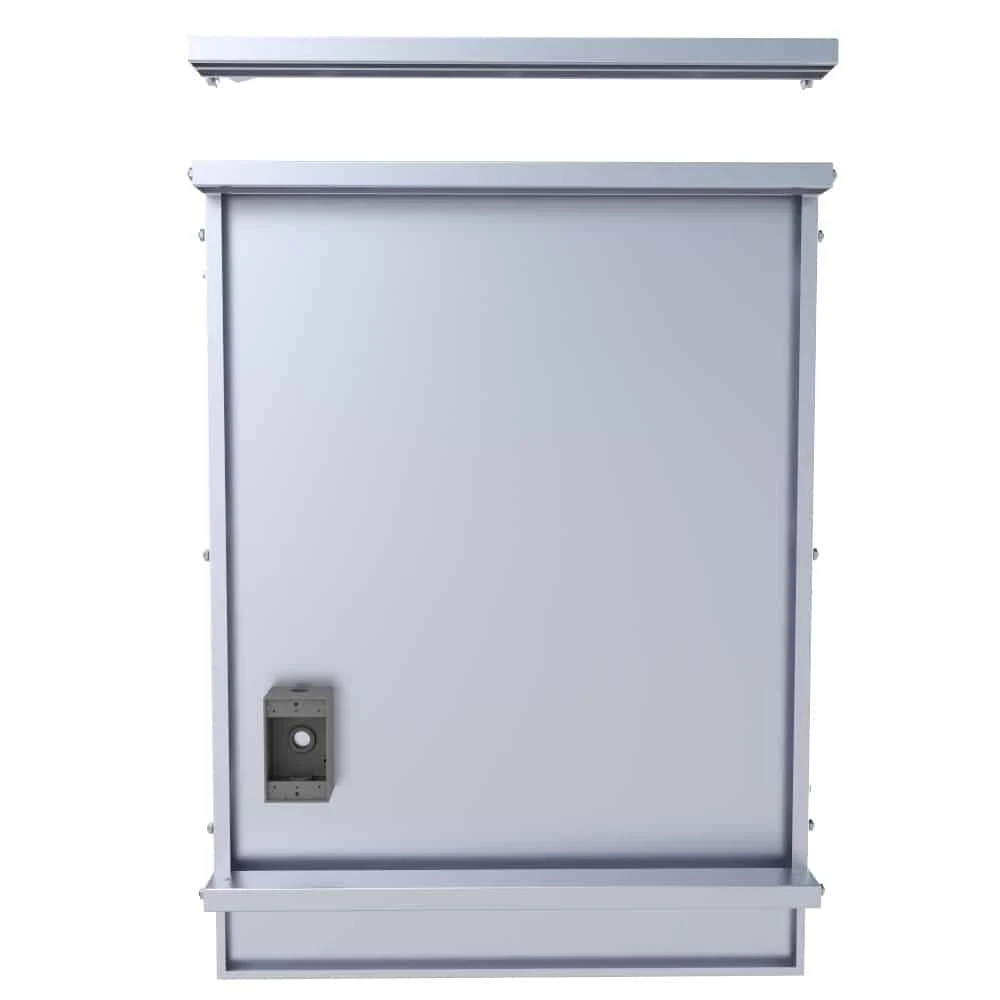

SCC25SPE Partition Panel
- Cabinet Size
- 25" Back Appliance Panel · Back Support Panel
- Appliance Type
- Partition Panel
- Max Appliance Width
- Pairs with 25" wide appliance run
- Max Height
- Adjustable
- Compatible Appliances
- 24" to 25" fridges, wine coolers, kegerators, Sunstone® 24" Fridge, Perlick® 24", Marvel® 24"
- Notes
- Back support panel for 25" appliance opening. Combine with SCC4SPEL/SCC4SPER side panels.
Not sure which appliance cabinet you need? Call us at 888-934-9449.

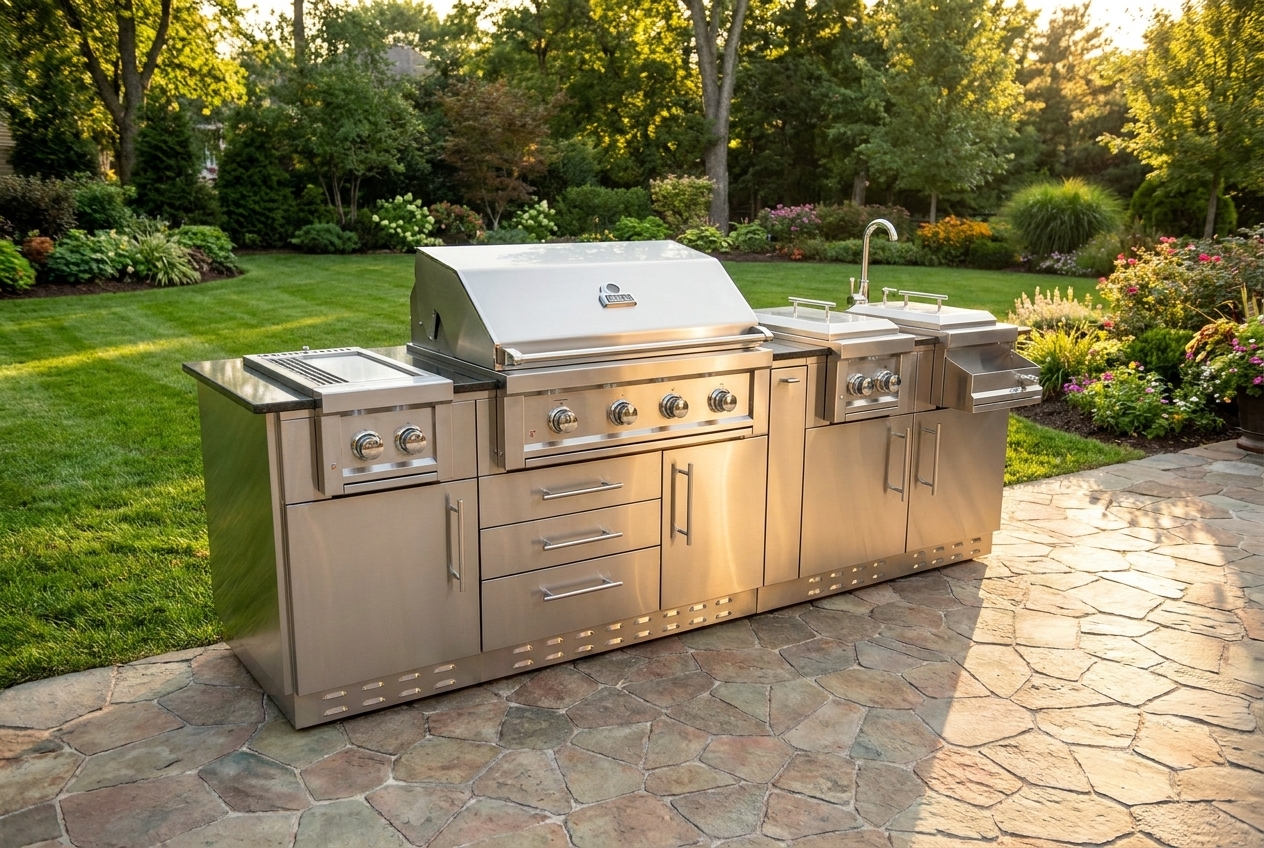

Built as part of a Sunstone island
Warranty
304 stainless cabinet bodies carry the same structural warranty as the rest of the island.
Learn more →304 Stainless Steel
No coated mild steel. Outdoor-rated stainless through the box, doors, and hardware.
Pin-Hinge Assembly
Cabinets lock to their neighbors without a contractor. Utility access ports and access points make the install easy.
Ships Fully Assembled
304 stainless cabinets arrive ready to pin-lock. Fasten the handles, screw in the legs, and snap on the kick plates.
Free Freight
Free freight shipping to the 48 contiguous states on cabinet orders.
Designed in Texas
Sunstone has built modular outdoor islands since 2001. Every cabinet pin-locks to the next for a single stainless run.

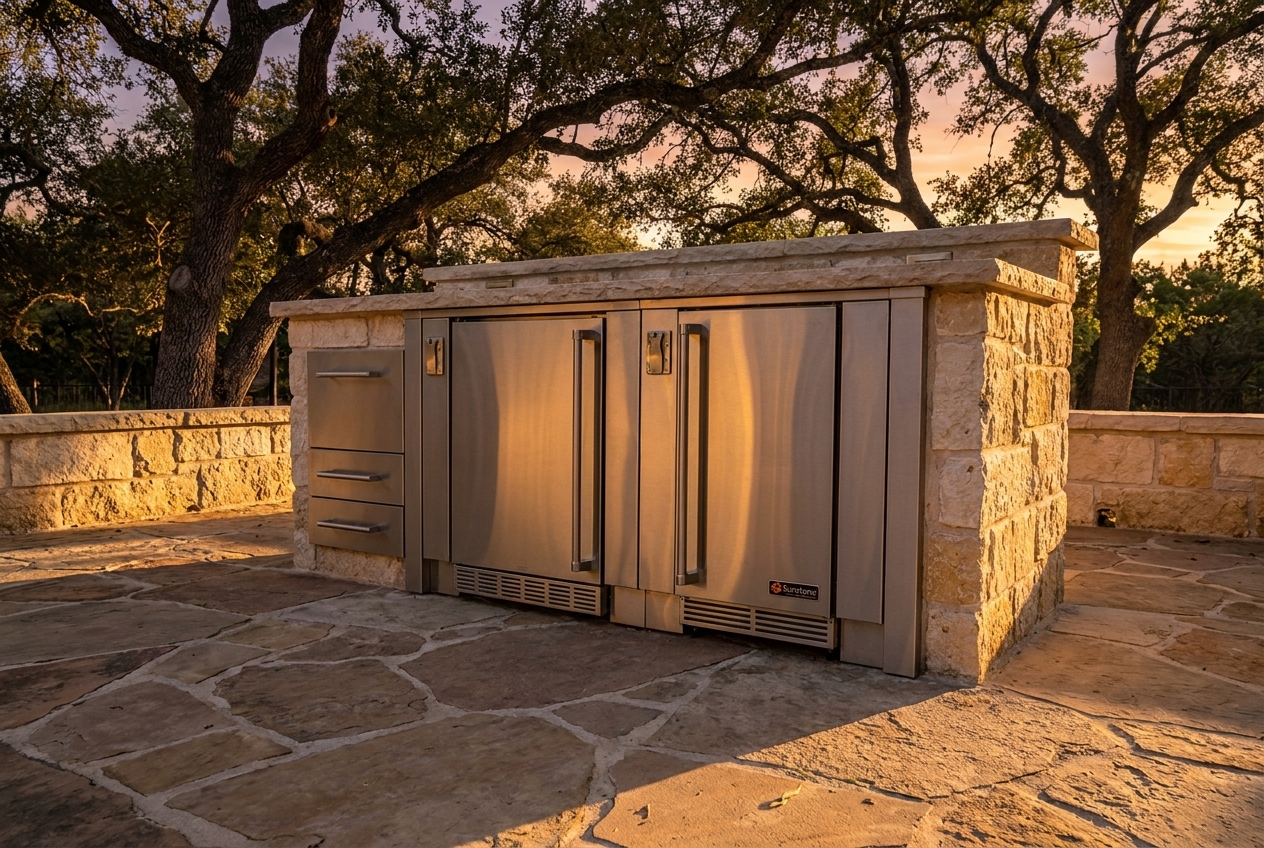

Appliance Panels
Panels are the skins of an appliance opening. A 21" back panel plus 4" partitions frames a fridge or ice maker on the 3" grid. Use them to expand an existing bay or build a custom opening. They have the same 304 finish as the APC fridge cabinets, pin-lock in place, and keep the removable counter rail.
- 15", 21" and 25" back appliance panels
- 21" back appliance panel
- 4" left and right side partitions
Shop the panels
| Specification | Value |
|---|---|
| Material | 304 stainless steel |
| Backs | 15" · 21" · 25" |
| Sides | 4" partition pair |
| Install | Pin-lock, removable counter rail |
Material
- Value
- 304 stainless steel
Backs
- Value
- 15" · 21" · 25"
Sides
- Value
- 4" partition pair
Install
- Value
- Pin-lock, removable counter rail
Appliance Panels in this collection
4 cabinets in this collection, each listed with width, cut-out, and material.
Back panels
15", 21", 25" appliance backs
Side partitions
4" left and right pair
