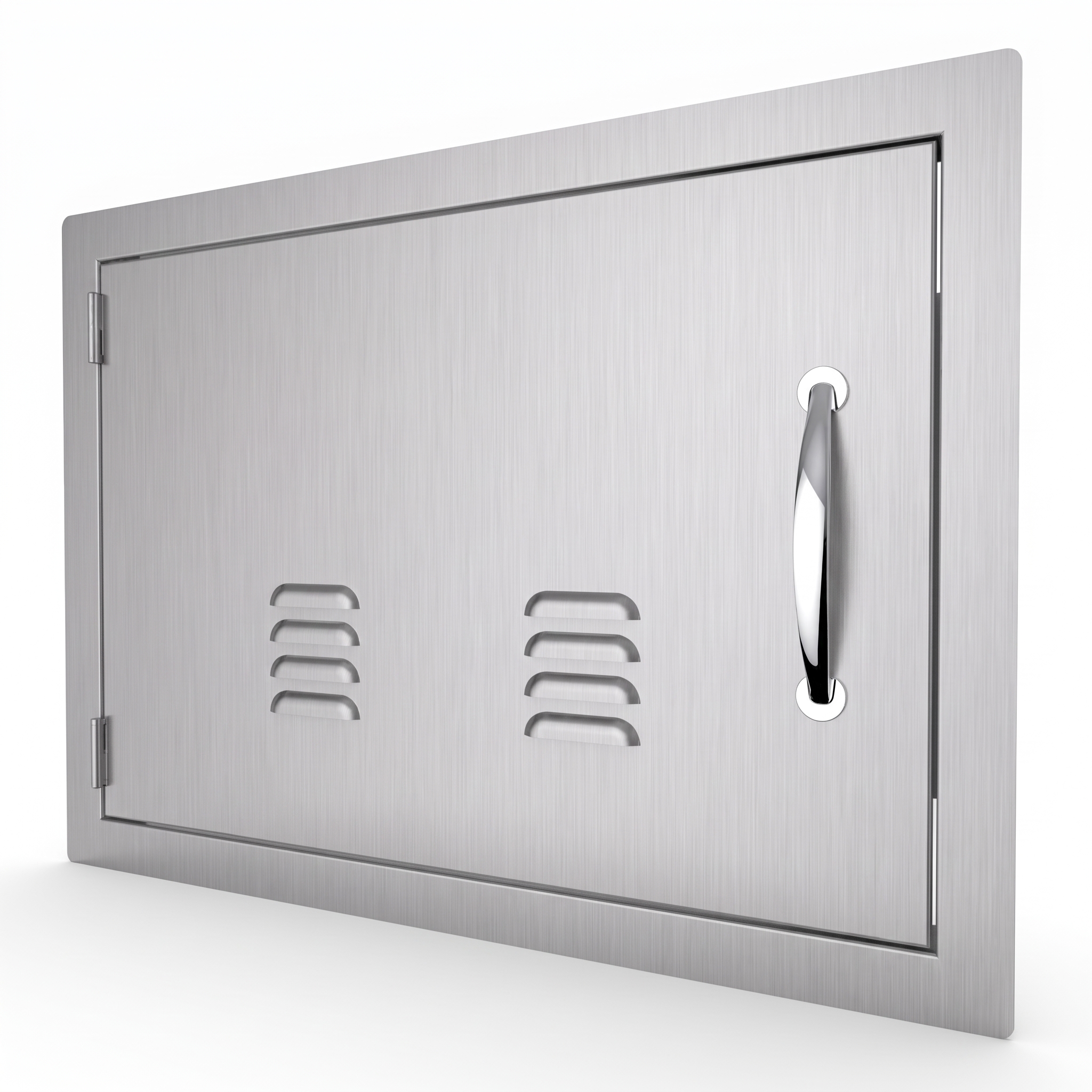

1 / 5Classic Series 17" x 24" Left Swing Horizontal Vented Door - A-DH1724-L
★★★★★4.6 · 5 reviewsKey features
- Size: 27" W x 20" H x 1-5/8" D
- Cut-out: 24-1/4" W x 17-1/4" H
- Vented (bottom louvers)

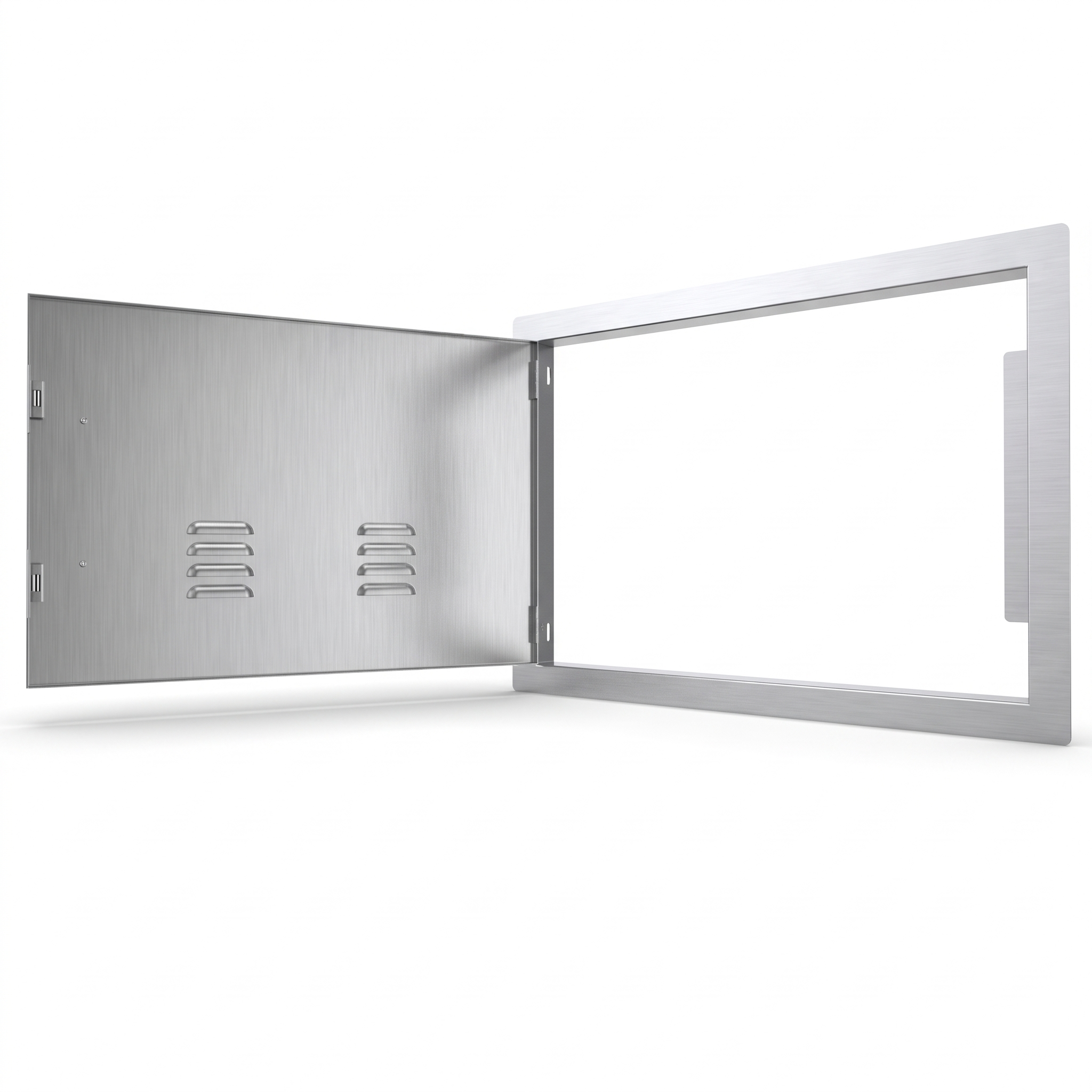

- Left swing only (the right swing version is item A-DH1724), opens 180 degrees
- Exposed hinges, 1" depth from face to frame mounting hole, fits a typical 4" island frame
- Top and bottom magnets with a steel strike plate
- 16 gauge 304 stainless steel frame, 18 gauge door panel, No. 4 light brushed finish, Polished Chrome Handle (zinc alloy, chrome plated)
- Weight: 11.5 lbs
Description
The Classic Series 17" x 24" Left Swing Horizontal Vented Door (A-DH1724-L) gives access to the space inside an island, and its bottom louvers let air move through. That airflow matters wherever a propane tank or gas lines are stored.
It measures 27" W x 20" H x 1-5/8" D and fits a 24-1/4" W x 17-1/4" H cut-out. Because it is vented, it swings left only; the right swing version is item A-DH1724. The door opens 180 degrees on exposed hinges. The depth from the face to the frame mounting hole is 1", and it fits a typical 4" island frame. Top and bottom magnets with a steel strike plate hold it closed. It weighs 11.5 lbs.

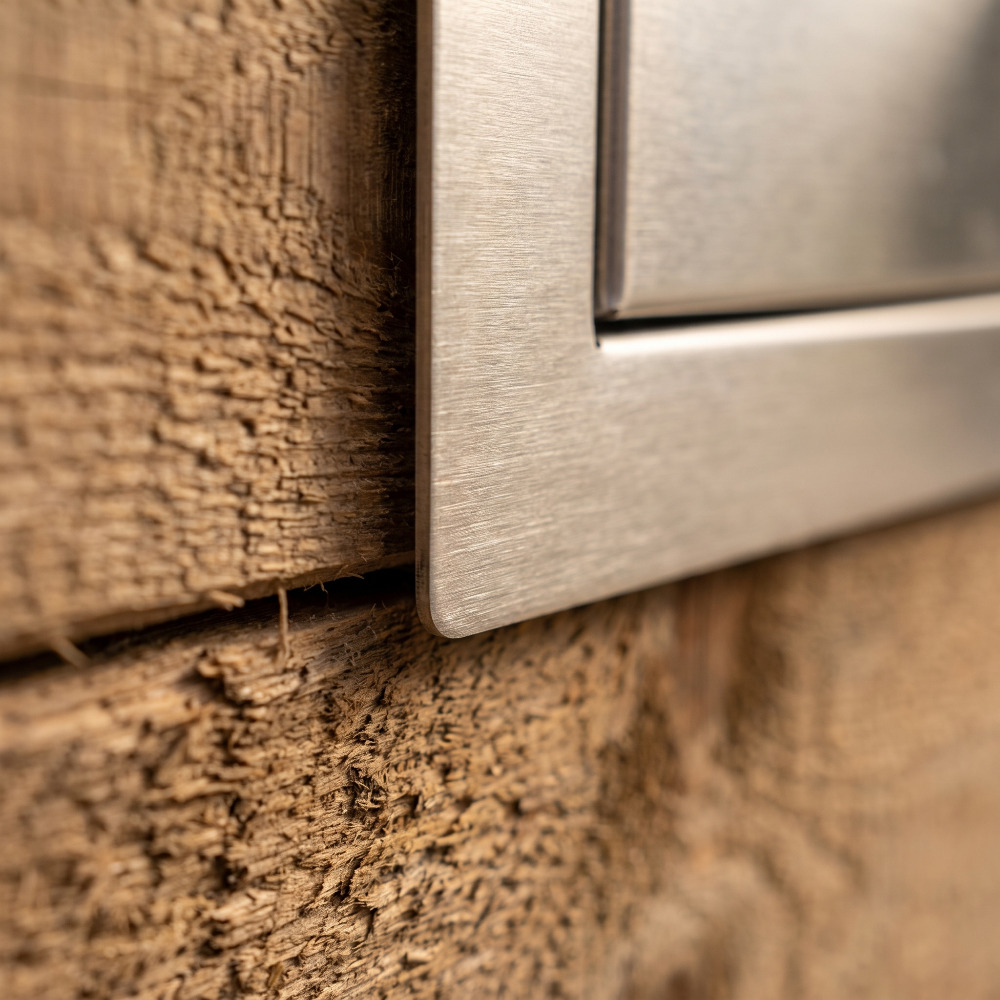

The frame is 16 gauge 304 stainless steel and the door panel 18 gauge 304 stainless steel, in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with the Polished Chrome Handle (zinc alloy, chrome plated).
See our warranty page for coverage.
| Name | Classic Series 17" x 24" Left Swing Horizontal Vented Door - A-DH1724-L |
|---|---|
| Item No. | A-DH1724-L |
| Series | ODK Components |
| Product size | 27" W x 20" H x 1-5/8" D |
| Cut-out | 24-1/4" W x 17-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Series | Classic Series Flush Style |
| Dimensions | 27" W x 20" H x 1-5/8" D |
| Cut-Out Size | 24-1/4" W x 17-1/4" H |
| Doors | 1 |
| Door Swing | Left swing (the right version is item A-DH1724) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11.5 lbs |
| Item Number | A-DH1724-L |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $188.00 | $235.00 | $198.00 | $161.00 | $235.00 |
| SKU | A-DH1724-L | A-DV1724-L | A-DV1420-L | B-DV1521 | DH1724 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Not listed | Classic Series Flush Style |
| Width | 27" | 20" | 17" | 15" | 27" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | Not listed | 1-5/8" |
| Height | 20" | 27" | 23" | Not listed | 20" |
| Cut-Out Width | 24-1/4" | 17-1/4" | 14-1/4" | Not listed | 24-1/4" |
| Cut-Out Height | 17-1/4" | 24-1/4" | 20-1/4" | Not listed | 17-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Left swing (the right version is item A-DH1724) | Left swing (the right version is item A-DV1724) | Left swing (the right version is item A-DV1420) | Not listed | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 304 stainless steel; 16 gauge frame, 18 gauge door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Hardware included for quick setup | Built-in |
| Weight | 11.5 lbs | Not listed | Not listed | 14 lbs | 11.5 lbs |
| Item Number | A-DH1724-L | A-DV1724-L | A-DV1420-L | Not listed | DH1724 |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Not listed | Non-vented |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | Not listed | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Not listed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Not listed | Polished Chrome Handle (zinc alloy, chrome plated) |
| Depth To Frame Hole | 1" | 1" | 1" | Not listed | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (5)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 3 business days after delivery.
Receiving Your Shipment
When the shipment arrives, please do the following:
- Inspect every box carefully before signing. There is no such thing as damage that is too small: dents, tears, crushed corners, punctures, or scuffs should all be noted.
- Take clear photos of any box that shows damage.
- On the delivery receipt, write down exactly how many boxes have visible damage. If it is electronic, have the driver show you where to notate the damage. Before handing it back, take a photo of the document showing your notation.
After the driver leaves, please immediately open and inspect the items themselves. If you find any damage, contact us with the following:
- A photo of the item unboxed with the damage visible
- A close-up photo of the actual damage
- A photo of the delivery document where you noted the box damage
These steps ensure we can file a claim quickly and get any replacement parts or items to you without delay.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This 17" x 24" vented door is exactly what I needed for my island. The left swing works with my layout and the vents are nice for air flow. Install was straightforward and it looks sharp with my other Sunstone pieces.
Feels solid and well made, up to Sunstone's usual standard. The 17" x 24" size is just right for getting to my propane tank. Only small complaint is the magnetic catch could be a bit stronger, but it still holds.
Installed this 17x24 left swing door in my new setup. Good sturdy door and the vents help keep things cool. I do think the price is a little steep for a single access door, but it matches the rest of my Sunstone gear.
Love this door. Venting is a must in my outdoor kitchen and the left swing is really convenient. Went right into my custom island and the build quality is excellent. Recommend it.
As a contractor I like the clean lines on this door. 17" x 24" is a standard size and left swing is a common request. Easy access, and the vents make sense for an outdoor enclosure. My client liked how it looked.
