1 / 5Sunstone Classic Series Flush Style Built-In Paper Towel Dispenser - A-TH
★★★★★4.8 · 5 reviewsKey features

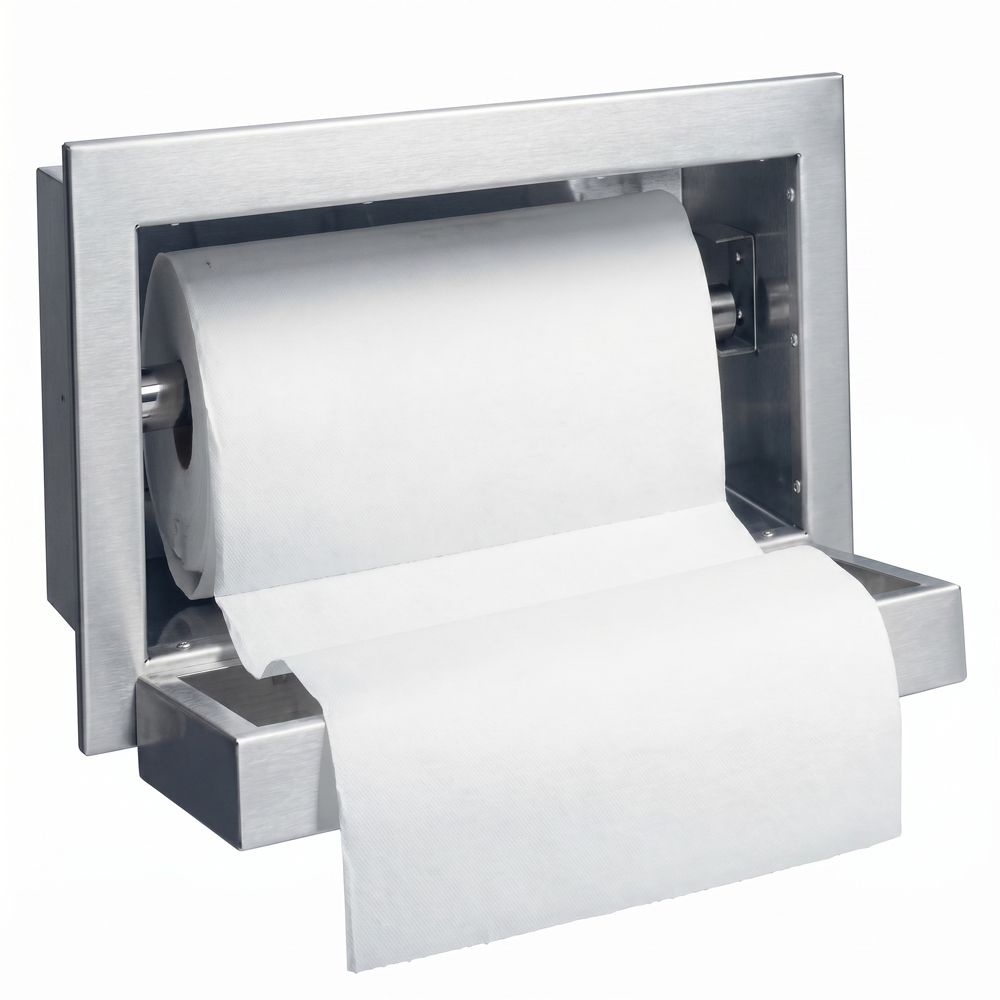

- Size: 8-3/4" W x 17-1/4" H x 8-1/4" D
- Cut-out: 6-3/4" W x 15-3/8" H x 6-1/4" D
- Mounts to open left, open right or open down
- Door opens 90 degrees on exposed hinges
- Paper towel rod with locking hook, pin and bracket
- Weatherproof enclosed 18 gauge galvanized box with removable rubber drain plugs
- 16 gauge 304 stainless steel frame, 18 gauge door, No. 4 light brushed finish; zinc alloy, chrome plated handle
- Weight: 10 lbs
Description

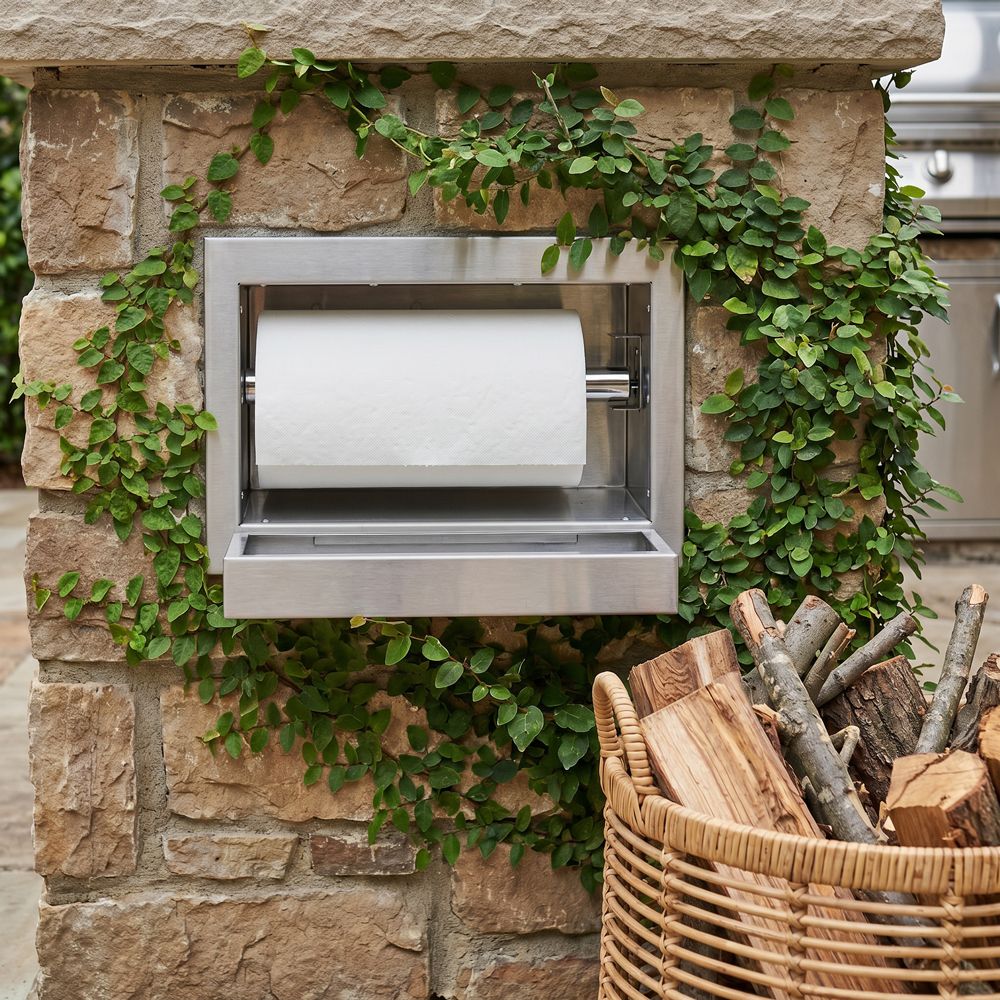

The Sunstone Classic Series Flush Style Built-In Paper Towel Dispenser (A-TH) keeps a roll of paper towels dry and within reach at the grill or prep area. It works with Sunstone outdoor kitchens, grills and cabinets.
It measures 8-3/4" W x 17-1/4" H x 8-1/4" D and fits a 6-3/4" W x 15-3/8" H x 6-1/4" D cut-out. It can be mounted to open left, open right or open down, so it fits an island wall, the space beside a door, or a narrow filler space. The door opens 90 degrees on exposed hinges, and the paper towel rod is held by a locking hook at one end and a pin and bracket at the other. It weighs 10 lbs.
The frame is 16 gauge 304 stainless steel and the door is 18 gauge, with a No. 4 light brushed finish that matches the other Classic Series doors, drawers and grills. The enclosed 18 gauge galvanized box is weatherproof, and removable rubber drain plugs let water out. The handle is zinc alloy, chrome plated. See our warranty page for coverage.
| Name | Sunstone Classic Series Flush Style Built-In Paper Towel Dispenser - A-TH |
|---|---|
| Item No. | A-TH |
| Series | Classic Series Flush Style |
| Product size | 8-3/4" W × 17-1/4" H × 8-1/4" D |
| Cut-out | 6-3/4" W × 15-3/8" H × 6-1/4" D |
Specifications
| Type | Paper towel holder |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Dimensions | 8-3/4" W × 17-1/4" H × 8-1/4" D |
| Cut-Out Size | 6-3/4" W × 15-3/8" H × 6-1/4" D |
| Material | 304 Stainless Steel |
| Gauge | 16 gauge frame, 18 gauge door, 18 gauge galvanized box |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 10 lbs |
| Compatibility | Sunstone® Outdoor Kitchens, Grills & Cabinets |
| Mounting | Open left, open right or open down |
| Door Opening | 90 degrees |
| Hinges | Exposed |
| Paper Towel Rod | Locking hook, pin and bracket |
| Drainage | Removable rubber drain plugs |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $158.00 | $135.00 | $135.00 | $198.00 | $198.00 |
| SKU | A-TH | C-VSDL12 | C-VSDR12 | A-DH1420 | A-DV1420 |
| Type | Paper towel holder | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 8-3/4" | 12" | 12" | 23" | 17" |
| Depth | 8-1/4" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 17-1/4" | 12" | 12" | 17" | 23" |
| Cut-Out Width | 6-3/4" | 9-1/4" | 9-1/4" | 20-1/4" | 14-1/4" |
| Cut-Out Height | 15-3/8" | 9-1/4" | 9-1/4" | 14-1/4" | 20-1/4" |
| Doors | Not listed | 1 | 1 | 1 | 1 |
| Door Swing | Not listed | Left swing (the right version is item C-VSDR12) | Right swing (the left version is item C-VSDL12) | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DV1420-L) |
| Material | 304 Stainless Steel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge frame, 18 gauge door, 18 gauge galvanized box | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 10 lbs | Not listed | Not listed | 11 lbs | Not listed |
| Door Opening | 90 degrees | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Zinc alloy, chrome plated | Turn-latch closure (no handle) | Turn-latch closure (no handle) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Item Number | Not listed | C-VSDL12 | C-VSDR12 | A-DH1420 | A-DV1420 |
| Venting | Not listed | Vented | Vented | Vented (bottom louvers) | Vented (bottom louvers) |
| Depth To Frame Hole | Not listed | 1" | 1" | 1" | 1" |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
